Product Details:
|
| Rated Power (W): | 400 | Rated Current(A): | 20 |
|---|---|---|---|
| Encoder Line Number (ppr): | 2500 | Safety Class: | IP65 |
| Environment: | Temperature -20~+50℃ Humidity Below 90%RH No Dewing | Insulation Class: | Class F |
| Rated Speed (rpm): | 3000 | Rated Torque (N.m): | 1.27 |
| High Light: | 400w DC Servo Motor,24V DC Servo Motor,80mm motor |
||

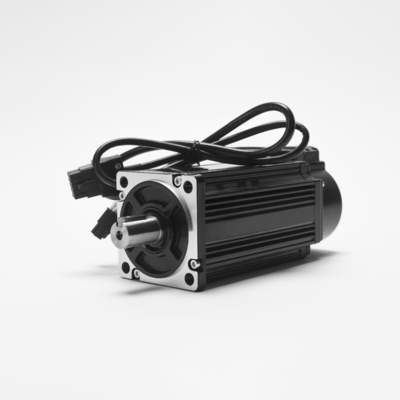

Ce Certificate 80mm DC Servo Motor 24V 400w 1.27nm Electric Motor
DC servo motors are typically utilized in applications that require precision control without being tethered to an AC power supply.
Some examples include:
• Robotic arms
• AGV wheels
• Industrial automation equipment
• Printers
• Indexers
• Any equipment that needs to perform tasks with accuracy and precision.
1) Can be widely used in mask machines, fans, pumps, compressors, transport machines, machinery, and other general machinery.
2) Can also be used in petroleum, chemical, steel, mining and other harsh scenes.
3) High-inertia servo motor, high smoothness operation
4) Waterproof, dustproof and greaseproof
5) Power change from 50w to 30kw
|
Rated Power (W)
|
400
|
|
Rated Voltage (V)
|
24
|
|
Rated Current (A)
|
20
|
|
Rated Speed (RPM)
|
3000
|
|
Rated Torque (N.m)
|
1.27
|
|
Voltage Constant (V/1000r/min)
|
4.5
|
|
Torque Coefficient (N.m/A)
|
0.063
|
|
Rotor Inertia (KG.M2)
|
1.05x10-4
|
|
Line-line Resistance (Ω)
|
0.06
|
|
Line-line Inductant (mH)
|
0.093
|
|
Electrical Time-constant (ms)
|
1.55
|
|
Encoder Line Number (ppr)
|
2500
|
|
Insulation Class
|
ClassF
|
|
Safety Class
|
IP65
|
|
Environment
|
Temputer: -20~+50℃ Humidity Below 90%RH No Dewing
|
1. Using Enameled Copper Wire, Not Enamelled Aluminium Wire, So the motor is a more reliable and long lifetime.
2. Low noise, Long lifetime.
3. More stable and safer when driving.
Company Introduction
Changzhou paliwei Motor Co., Ltd was a high technology industry zone in Changzhou, China. Our products are used in many kinds of machines, such as 3d printers CNC machines, medical equipment, weaving printing equipment, and so on.
Q: How to order?
A: send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
Q: How about a Sample order?
A: A sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the delivery [Producing] and shipping?
A: Deliver time depends on the quantity you order. usually, it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconvenience.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Contact Person: Mr. Wang
Tel: 13961468369
