|Product Name:||BLDC Motor||Rated Voltage:||48V|
|Body Length:||138mm||Rated Torque:||0.44N.m|
|Rated Speed:||11000rpm||Rated Power:||500W|
|Phase:||3||Number Of Poles:||8|
500W Cnc Spindle Motor,
Cnc Spindle Motor DC 48V,
0.44N.M Brushless Electric Motor

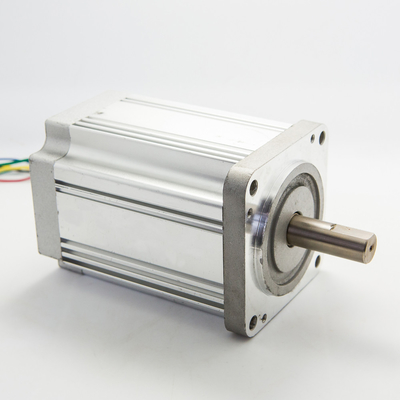

500W Cnc Spindle Motor DC 48V 0.44N.M Brushless Electric Motor
A Brushless DC Electric Motor (BLDC) is an electric motor powered by a direct current voltage supply and commutated electronically instead of by brushes like in conventional DC motors. BLDC motors are more popular than the conventional DC motors nowadays, but the development of these type of motors has only been possible since the 1960s when semiconductor electronics were developed.
Both types of motors consist of a stator with permanent magnets or electromagnetic coils on the outside and a rotor with coil windings that can be powered by direct current on the inside. When the motor is powered by direct current, a magnetic field will be created within the stator, either attracting or repelling the magnets in the rotor. This causes the rotor to start spinning.
|Hall effect angle||120 degree electrical angle|
|Shaft run out||0.025mm|
|Max.radial force||75N ＠20mm form the flange|
|Insulation class||Class B|
|Dielectric strength||500VDC for one minute|
|Insulation resistance||100MΩ Min.,500VDC|
Brushless DC motor itself is the electromechanical energy conversion part, it in addition to the motor armature, permanent magnet excitation two parts, but also with a sensor. The motor itself is the core of brushless DC motor, which not only relates to performance index, noise and vibration, reliability and service life, but also involves manufacturing cost and product cost. By adopting permanent magnetic field, the brushless DC motor can get rid of the traditional design and structure of the general DC motor, which can meet the requirements of various application markets, and develop towards the direction of saving copper and materials, and making it easy. The development of permanent magnet field is closely related to the application of permanent magnet materials. The application of the third generation of permanent magnet materials promotes the brushless DC motor to the direction of high efficiency, miniaturization and energy saving.
|main applications of bldc motor|
|Medical equipment||Hand-held surgical instruments||Aerospace Industry||Electric seat adjustment post|
|Surgical robot||Flight recorders|
|Micro-injection pump; Peristaltic pump||Autopilot|
|Automatic dosing system||Space Robot|
|Radiation therapy equipment|
|Diagnostic equipment and testing instruments|
|Robot||Humanoid robot||Auto industry||Adjustable shock absorbers|
|Service robots||Emission abatement system|
|Teaching Robots||Electronic steering|
|Industrial Automation||Precision Positioning System||Communications Equipment||Antenna System|
|Handling System||Copier / printer / plotter|
Ideal Applications for BLDC Motors
We’ve seen that BLDC motors offer high efficiency and controllability, and that they have a long operating life. They are widely used in devices that run continuously. They have long been used in washing machines, air conditioners, and other consumer electronics; and more recently, they are appearing in fans, where their high efficiency has contributed to a significant reduction in power consumption.
They are also being used to drive vacuum machines. In one case, a change in the control program resulted in a large jump in rotational speed—an example of the superlative controllability offered by these motors.
BLDC motors are also being used to spin hard disc drives, where their durability keeps the drives operating dependably over the long term, while their power efficiency contributes to energy reduction in an area where this is becoming increasingly important.
