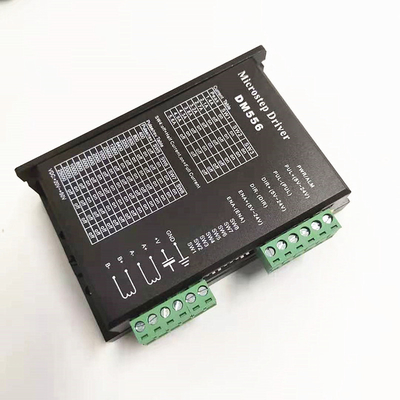

Original Microstep DM556 DSP Digital Stepper Motor Driver Module

I'm Online Chat Now

Original Microstep DM556 DSP Digital Stepper Motor Driver Module

Original Microstep DM556 DSP Digital Stepper Motor Driver Module
Original Microstep DM556 DSP Digital Stepper Motor Driver Module

Large Image :  Original Microstep DM556 DSP Digital Stepper Motor Driver Module

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10000 piece/pieces per month

Original Microstep DM556 DSP Digital Stepper Motor Driver Module

Description
Model Number: DM556 Driver Stepper Motor Output Current: 0A-1.8A
Certification: CE RoHS Application: Fast Gate,Sliding Door,Wing Brake,Security Equipment
Communication: RS232/RS485/CAN Material: Aluminum Alloy
Product Name: Phase
High Light:

DM556 Digital Stepper Motor Driver

,

DSP Digital Stepper Motor Driver

,

RS232 Stepper Motor Driver Module

Original Microstep DM556 DSP Digital Stepper Motor Driver Module



1. 24 to 48VDC Supply Voltage

2. H-Bridge, 2 Phase Bi-polar Micro-stepping Drive

3. Suitable for 2-phase, 4, 6 and 8 leads stepper motors, with Nema size 16 to 34

4. Output current selectable from 1.0 ~ 4.2A peak

5. Current reduction by 50% automatically, when motor standstill mode is enabled

6. Pulse Input frequency up to 200 kHz

7. Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs

8. Selectable resolutions up to 25000 steps

9. Over Voltage, Coil to Coil and Coil to Ground short circuit protection



Specifiication

Parameters Min Typical Max
Supply voltage (VDC) 24V 36V 48V
Output Current(A)(Amps) 1.0 - 4.2
Logic Input Current(mA) 7 10 16
Pulse input frequency (KHZ) - - 200
Low Level Time(US) 2.5 - -





• We have obtained ISO,RoSH certificate and become a assessed supplier by Alibaba.

• Our products are selling all over the world.

• We have top sales team, R&D team,QC team , PMC team and logistic team

• Professional and flexible product service

• Delivery on time

• experiential selling service

• Welcome to visit our factory,

• Contact us now to get the latest price .

• We will reply you at the first time.





Features:

1. Low noise and long life

2. Efficient and energy saving

3. Wide range of uses

4. Tamagawa 2500PPR incremental encoder
